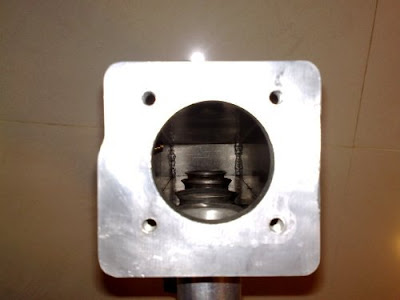

JM Fabrications 2G DSM Street Version Intake Manifold

JM Fabrications 2G DSM Street Version Intake Manifold, 官網 產品介紹:
Introducing our aluminum "Street Version" sheetmetal intake manifold. Similar to our "Race" version but it includes a smaller plenum designed for better spool up on the street/auto X track. It is recommended for cars running a 20g or smaller turbo. These are hand made, TIG welded from high quality 6061 T6 aluminum. The flanges are all CNC machined and surfaced for precise fitment and a leak free seal. Each plenum is press bent to reduce the number of welds which will assure maximum strength under high boost applications. Velocity stacks are CNC machined into each plenum bottom to improve airflow by 10-15%. The vacuum ports are placed on the underside of the plenum for a clean professional look. Expected gains can be anywhere from 10-25 HP depending upon your setup!
We HIGHLY recommend using at least a 1G throttle body when running this manifold ('91-'94, don't mess with the '90) after all what's the point of having a high flowing intake manifold if you're not going to use a throttle body to match it! These manifolds are designed for DSM's with eliminated EGR. Some modifications to your coil pack mounts and upper intercooler pipes may be needed as this manifold sits down a lot lower than stock. 2G cars will most likely need to remove the cruise control box and tweak the brake fluid container for a better fit. If using the Accufab and other aftermarket throttle bodies please note that the throttle cable and TPS sensors may need modifying.
Also available is a RWD version of this manifold for no extra cost, perfect for the custom 4G63 swap into a rear wheel drive vehicle. If purchasing this version online be sure to specify during checkout in the "Comments" section.Street Version,


售價高貴, 有興趣的可以上去看看, 麵包訂購的規格如下:
4 Vacuum Port,
MDPS Port,
for 2G Eclipse 4G63 and flange for 1G TB,
Polished,
Eclipse 4G63 Intake 02一文中有提過這家公司的產品, 在採購的時候可以選擇產品類別(Street/Race/Drag, 差別在歧管的形狀及容量)、車種(1G/2G)、節氣門種類(1G/2G/others)、真空管接口數、噴油嘴追加(NOS?)MDPS Port或拋光等等, 總之是客製化條件十足, 但也實在不便宜.






擺了快一年了, 便宜出讓中.
