ARP L19 Headstud Kit for Mitsubishi Eclipse 7-Bolt 上座強化螺絲

ARP L19 Headstud Kit for Mitsubishi Eclipse 7-Bolt, 官網連結.

產品說明如下:
ARP's L19 material is a premium steel that is processed to deliver superior strength and fatigue properties comparable to A1 Technologies H11 Tool Steel. L19 is a very high strength material compared with 8740 (standard ARP headstuds) and is capable of delivering a clamp load at 260,000 psi. It is primarily used in short track and drag racing applications where inertia loads exceed the clamping capability of ARP2000. Like most high strength, quench and temper steels - L19 requires special care during manufacturing to avoid hydrogen embrittlement. This material is easily contaminated and subject to stress corrosion. It must be kept well-oiled and not exposed to moisture. These come packaged individually wrapped in a special wax paper to prevent contact with moisture until ready to be used.
Because of the many head lifting issues on 4G63 blocks running in excess of 35+ PSI, a stronger stud needed to be manufactured to meet the demands of today's top engine builders and racers alike. The L19 head stud upgrade comes with Studs, Washers, and Bolts for a complete installation. No Modification to your cylinder head or block is required as these are a direct drop-in replacement for the OEM head stud!
Yield Strength: 200-230,000 PSI
Tensile Strength: 260,000 PSI

反正就是一個強, 一時手癢又買了...
到貨開箱!!!
10組螺絲, 墊圈與螺帽, 附上專用螺絲膠.

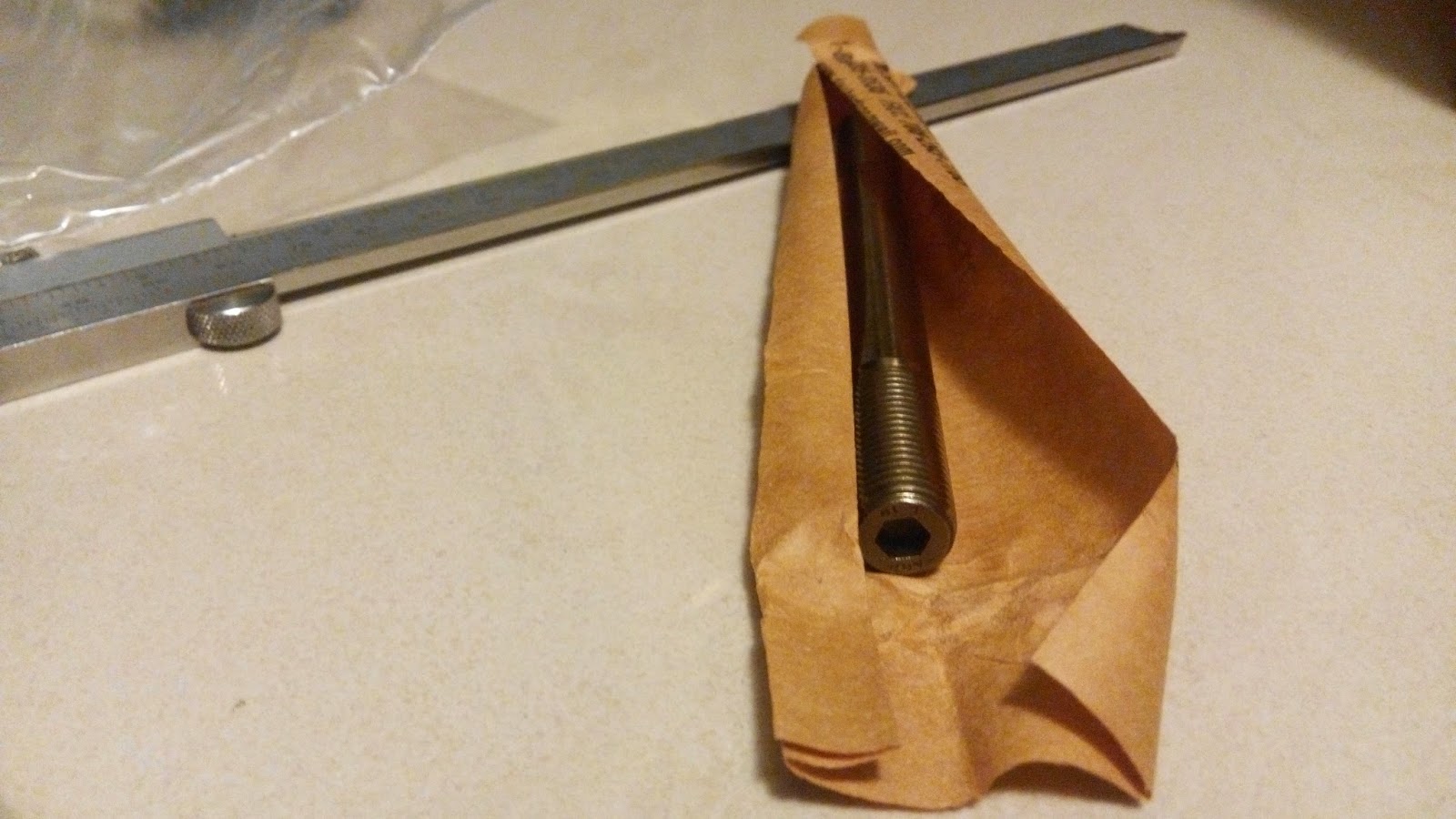

10支L19螺絲, 除了油紙包覆之外, 還套上膠套保護.

螺絲本體, 直徑11mm.

螺絲底部是平面的.

螺絲頭部為內六角, 拆除用? 上面還有ARP L19刻字.

墊圈與螺帽, 螺帽規格為英制1/2" 12角.



ARP螺絲安裝扭力規範表, 官網連結.


等有空就來 安裝上車.


:)
